Description
The brewhouse is used to get quality wort by mashing, lautering, boiling and whirlpooling etc. In the independent commercial or industrial beer plant, the brewhouse is usually customized to four even five vessel for getting a super output, 4-5 batches per day. Accordingly, the brewmasters would work in shifts to keep the brewhouse running at day and night. In order to save labor efficiently, the control system of brewhouse equipment usually be much more automatic, such as the pneumatic valve, PLC touch screen etc. It is in compliance with modern brewery standards and specifications.
Besides, in some beer plant, the brewmasters would add secondary ingredient as adjunct starch source, like rice, corn etc. If so, a extra cooker had better be equipped in the brewhouse.

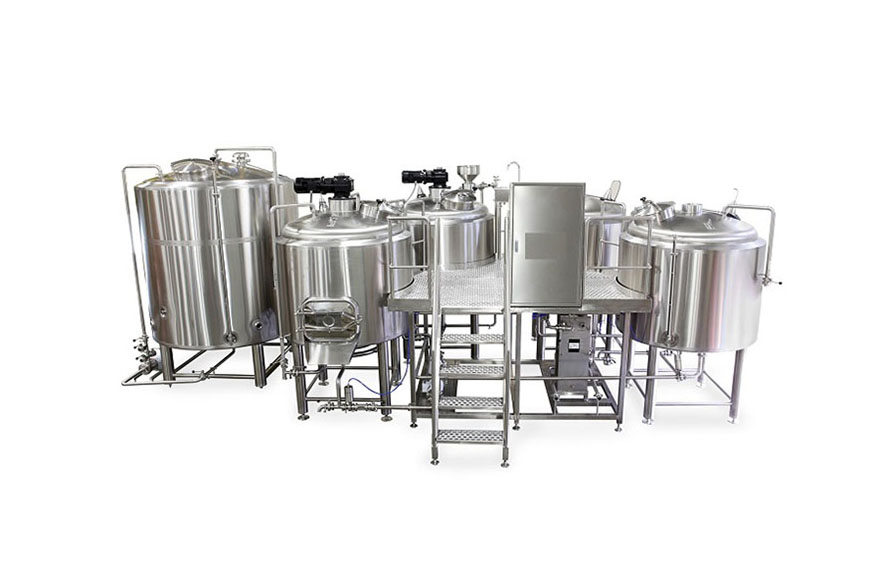

Quick overview of 2000L four vessel brewhouse
| Structure | 2000L mash tun+2000L lauter tun+2000L whirlpool tun+2000L kettle tun+4000L hot liquor tank |
| Tank Capacity | 2000L (+25% Headspace minimum) |
| Tank Size | Φ1760x2600mm |
| Material | Stainless steel 304/316 |
| Batches/Day | 4-5 batches per day |
| Heating Way | Steam |
| Electric Power | 3phase/380(220,415,440…)v/50(60)Hz |
| Note | Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter; |
Main configuration of 2000L four vessel brewhouse
2000L mash tun with steam heating
● 2mm exterior shell and 3mm interior shell
● Glass manway
● Agitator with VFD controled motor and turbine reducer
2000L lauter tun
● 2mm exterior shell and 3mm interior shell
● Glass manway
● Grain rake with VFD controled motor and turbine reducer
● Automatic lifter of spent grain scraper blade
● Inline wort lauter sight glass
● Laser cutting V-wire False Bottom/Filter
● Bottom mounted grain outdoor
2000L brew kettle with steam heating
● 2mm exterior shell and 3mm interior shell
● Glass manway
● Agitator with VFD controled motor and turbine reducer
● Sanitary leveling sight glass
● Steam vent with condensate ring for kettle stack
2000L whirlpool tun
● 2mm exterior shell and 3mm interior shell
● Glass manway
● Anticlockwise Tangential whirlpool inlet in Northern Hemisphere
● Clockwise tangential whirlpool inlet in Southern Hemisphere
Other auxiliary equipment
● 4000L hot liquor tun with steam heating
● 700L cooker
● flexible auger/bucket elevator
● 1400L hoppper and a malt hydrator
● Pneumatic valve
● Flow meter
● Hop back
● Sink and platform
● 20m2 heat exchanger
● 5T mash, wort and hot liquor pump
● 50L Grant/buffer tank to guarantee lautering by gravity
● 30L yeast feeder
● PLC control with touch screen
Contact us immediately to get latest specification and price of 2000L four vessel brewhouse.
Product detail pictures:
