Factory wholesale Brewery Equipment Beer Brewing - 5BBL Craft Brewery Brewing Equipment – Alston Detail:
Features
1. Applicable for the nanobrewery, microbrewery, brewpub, taproom, restaurant
2. Compact designed system
3. Easy for control
4. Low cost to operate
Specifications
Brewhouse Capacity | 7BBL/brew |
Materials | SUS 304 Stainless Steel |
Interior Finish | Acid washing and passivation |
Polishing Precision | 0.2~0.4μm |
Standard Configurations
Combined 2-Vessels Brewhouse System:
1*7BBL Mash/ Laute tank
1*7BBL Kettle/ Whirlpool Tun
1*7BB Hot Liquor Tank
Glycol Jacketed Conical Fermentation Tank:
7BB Fermentation Tank
Cooling Unit:
1*13BBL Glycol Water Tank
1*8HP Chiller
1*3m3 Centrifugal Pump
Controlling Unit:
Brewery Instrumental Control Cabinet
Cleaning Unit:
2*1BBL Tanks Portable CIP Cart
All the items listed above could be custom made upon your particular needs.
For more details, please feel free to contact us by email or by the inquiry sheet.
Standard setup
7bbl Brewhouse Unit
● Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination.
● Hot water tank and cold water tank for optional in special combinations.
● Infusion or decoction brewing methods are designed exactly.
● Stainless steel or copper cladding are popular.
● Two stages or single stage heat exchanger for wort cooling.
● Completely stainless steel integrated work platform.
● Sanitary and efficiency wort pump.
● All pipings and fittings.

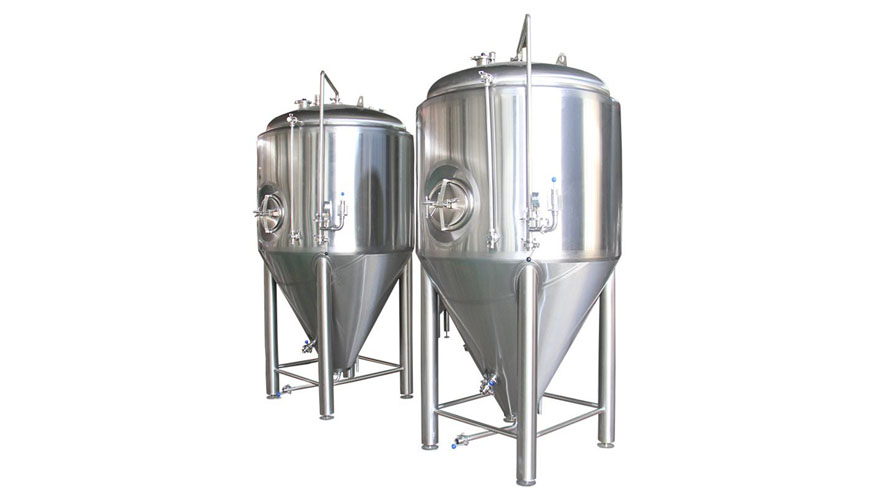

7BBL or 14BBL Fermentation Unit
● Standard stainless steel conical cylindrical fermentation tanks.
● Single size as brewhouse is common used in restaurant.
● Tanks quantity is exactly calculated by fermentation cycle for various beers.
● All manhole, valves, pressure gauges, fittings etc are included.

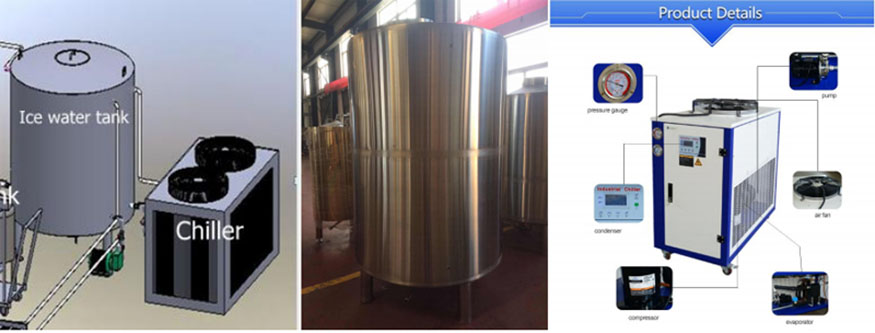

Cooling Unit
● Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
● Efficiency chillers or refrigerators with fryon to supply cooling energy
● Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
● All pipes, fitting, insulation materials are include

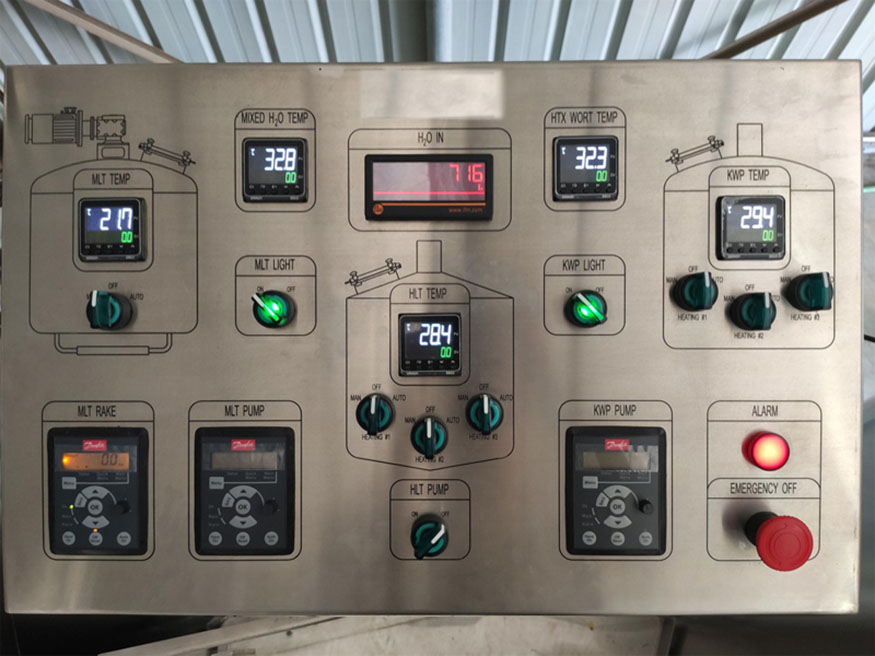

Controlling Unit
● Electrical controlling cabinet with temperature, on-off controlling for brewhouse
● Electrical controlling cabinet with temperature, on-off controlling for cooling parts
● Temperature controller, thermocouple, solenoid valves etc are included
● PLC with touch screen panel for special request
Product detail pictures:
