MicroBrewery Brewing Equipment

The Importance of Choosing the Right Equipment
Selecting the appropriate equipment for your microbrewery will not only ensure the efficiency of your brewing process but also maintain the desired quality and flavor of your beer.
Investing in high-quality equipment will also help minimize maintenance costs and reduce downtime.

Essential Microbrewery Equipment as below:

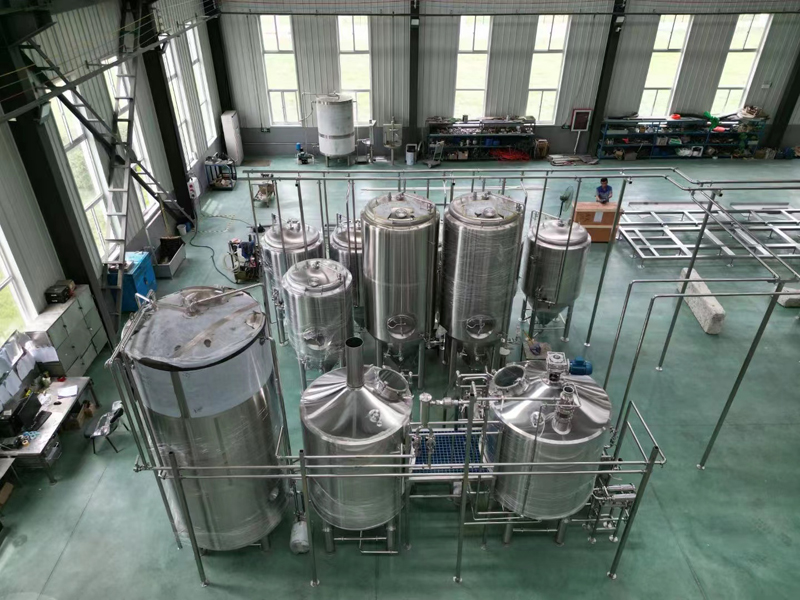

Brewing System

The heart of any microbrewery is the brewing system, which includes several key components:

Mash Tun

The mash tun is where the mashing process takes place. It's designed to hold the grain and water mixture, called the mash, and maintain a consistent temperature to facilitate the conversion of starches into fermentable sugars.

Lauter Tun

The lauter tun is used to separate the sweet liquid, called wort, from the spent grain. It features a false bottom with slits or perforations to allow the wort to pass through while holding back the grain.

Boil Kettle

The boil kettle is where the wort is boiled and hops are added. Boiling serves to sterilize the wort, concentrate the sugars, and extract bitterness and aroma from the hops.

Whirlpool

The whirlpool is used to separate hop matter, proteins, and other solids from the wort. By creating a whirlpool effect, the solids are forced to the center of the vessel, making it easier to transfer clear wort to the fermentation tanks.

Fermentation and Storage

After the brewing process, the wort needs to be fermented and stored:

Fermenters

Fermenters are vessels where the wort is mixed with yeast and fermentation occurs, converting sugars into alcohol and carbon dioxide.
They are typically made from stainless steel and feature a conical bottom to facilitate yeast harvesting and removal of sediment.

Bright Beer Tanks

Bright beer tanks, also known as serving or conditioning tanks, are used to store the beer after fermentation and filtration.
These tanks allow for carbonation and clarification, and they maintain the beer's freshness and flavor before packaging.

Filtration, Carbonation, and Packaging

To ensure the final product is clear and carbonated, additional equipment is needed:

Filters

Filters are used to remove any remaining yeast, proteins, and other particles from the beer, resulting in a clear and bright final product.
There are various types of filters available, such as plate and frame filters, cartridge filters, and diatomaceous earth filters.

Carbonation Equipment

Carbonation equipment allows you to control the level of carbon dioxide dissolved in your beer.
This can be achieved through natural carbonation during fermentation or by using a carbonation stone, which forces CO2 into the beer under pressure.

Kegging and Bottling Systems

Once your beer is filtered and carbonated, it's ready to be packaged. Kegging systems enable you to fill kegs with beer, while bottling systems allow you to fill bottles or cans.
Both systems ensure minimal oxygen exposure, maintaining the freshness and quality of your beer.

Additional Microbrewery Equipment

Besides the core equipment, there are other essential items for your microbrewery:

Cooling and Temperature Control

Temperature control is crucial throughout the brewing process. Glycol chillers and heat exchangers are commonly used to maintain the desired temperatures during mashing, fermentation, and storage.

Cleaning and Sanitation

Keeping your equipment clean and sanitized is vital to prevent contamination and ensure the quality of your beer.
Invest in cleaning equipment, such as chemical cleaning agents, spray balls, and CIP (clean-in-place) systems.
